Every Building is Passive Solar

Every Building is a Passive Solar Building

Although the term "passive solar" is generally applied only to buildings whose primary heat source is the sun, the effect still operates on essentially every building because the sun still shines and windows still let it in.  While the obvious difference is that traditional passive solar building have used quite a bit of glass, the more important difference is that the majority of buildings are designed ignoring the effect of the sun.  This is somewhat like going outside in a T-shirt in winter and then having to exercise vigorously to stay warm, or going out in summer wearing a coat.  Buildings everywhere not only are losing out on free solar energy, but they're often overheating or overworking the air-conditioner in the summer.  Because energy has been relatively cheap, we've gotten away with such poor design.`

The typical situation is actually somewhat worse, because the typical building is grossly under-insulated.  Because opaque materials absorb sunlight (particularly dark ones like common roofing shingles), the entire building acts like a mediocre solar collector: in particular one that tends to transfer much more summer sun than winter sun, adding to summer cooling loads while providing only a small winter benefit.

Unfortunately most of our urban areas are also laid out in total disregard to solar energy--their sun is blocked by either other buildings, or by trees.  This affects not only passive solar, but the effectiveness of any PV system placed on the building's roof. Short of re-platting out our cities, there is still much that can be done, even if its only to make sure the roof is oriented so that we could install PV or solar hot water on it, but unfortunately many buildings even fail to do this.

Historically this disregard was mitigated somewhat by buildings having relatively small windows, and more recently by using glass that blocks 80% of the incoming heat, but unlike an overhang those windows block the incoming heat all year, rather than just in summer.

How much energy is actually wasted due to ignoring passive solar design principles is unclear, especially since lack of insulation is such a dominant factor.  What is true is that in colder climates there is a very large lost opportunity cost in that good design could provide quite a bit of heat while, and that in climates with hot summers there is can be a significant savings in cooling loads with good design.  At the risk of sounding like a broken record, the point here is that orienting correctly, putting windows on the south and designing the right overhang doesn't add any construction cost: the improved performance is essentially free.

Summary: No matter what type building and building site, its worth considering the how the effects of sun and wind on the site interact with the building's envelope, windows, overhangs, and mass.

Passive Solar of Analysis of Everyday Buildings

The following examples are all in the Seattle area.  Most of them are south facades with a good sun exposure; the rest are western facades because those are most susceptible to overheating.  None of the buildings are especially unique, they are just the examples that I happen to easily find while riding around on a bicycle1.  Because "modern" style building use more glass, they are more affected by the sun, and hence are probably over-represented here relative to their occurrence.  Older buildings are not immune, and I've tried to show many architectural styles.

The analysis done on each house is based on what can be seen from the street and assumptions: I assume the insulation level is somewhere between lousy and terrible, that there is no thermal mass, and that the glass is not the low solar heat-gain variety unless the building is quite new.  What you do see is a sense of the orientation of the building, how much glass there is to soak up  the sun, and what kind of overhangs are there to protect it. The idea isn't to critique these specific buildings, but essentially all of them.

s face16

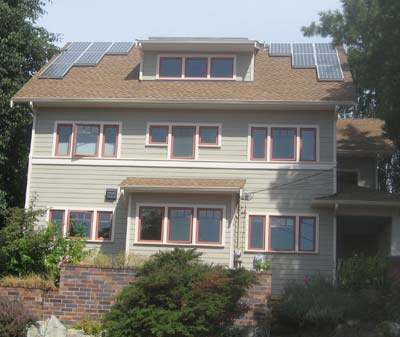

S facade at noon Aug 21st3  This is my house--designed to get about 25% of its heat from passive solar. The orientation is good, but not ideal since the lot shape and zoning prohibited it growing in the E-W direction any further. Two of the window banks have no overhang-again not ideal, but trees, and side shading from the central bump out are letting us get away with it (note the two shadows). The shades on the upper left are in the bedroom, where the window was sized for solar gain, but not for privacy.
The overhangs were designed to maximize spring solar gain, so late summer overheating is a concern.  Here you can see that the sun is coming in more than half of each window, which is only Ok because Seattle has cool summers.
s face1

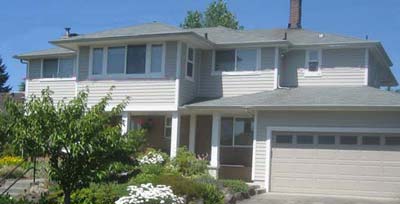

S facade at 2pm July 28th.  The house is oriented well, and well shaded against the summer sun (except one behind the tree but even it gets side shading).  Heating season gain isn't so good: on the lower floor, the recess creates a far too large overhang.  The roof overhang shades the 2nd story windows (here 37 days past the solstice), indicating that even in March, much of the upper windows will be shaded. This alas is a better than average example.
s face2

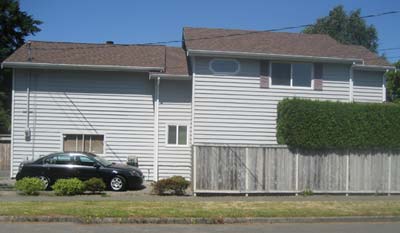

S facade at 2pm July 28th.  This house is very close to the street and hence has few south facing windows.  The roof overhang covers the upper window well, and the lower two are small enough that they will only present and overheating problem is the rooms are equally small. The resource is just squandered.  One alternative for this situation would be thermosiphon wall, or other non-transparent type collector.,
s face3

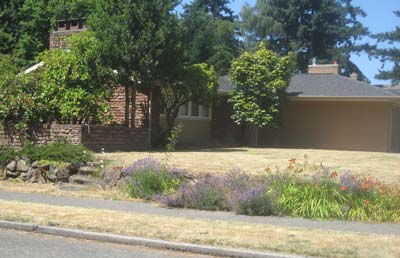

S facade at 2:30pm July 28th.  This house has a bigger lot and it off the street (which is very low traffic); unlike the previous example, the closest setback looks to be at least 15'.  The resource is squandered here for no obvious reason: it appears to be a case of a floor plan with no regard to its site.
Since prevailing winds are N or S, this house is also not well set up for natural ventilation.
s face4

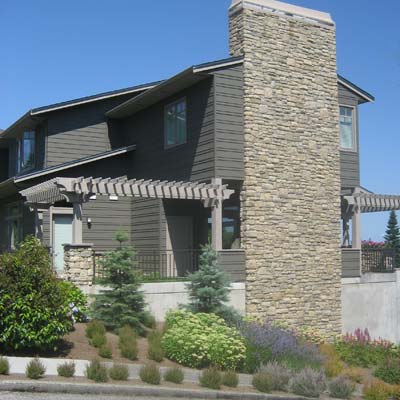

S facade at 2:30pm July 28th.  This is a big house on a largish lot. The big chimney that dominates the south facade appears to be for an outdoor fireplace (the first floor hear is outdoors). There is a very nice view to the east (right in photo), so additional east facing glass is to be expected, but that no reason to have so little south glass  The house also could have been oriented more east-west than it is.
s face5

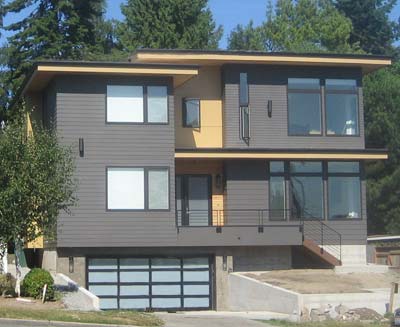

SW facade at 5pm Aug 3rd.  This house is oriented 50°-60° off of the E-W axis, so that much of its glass is nearly fully exposed to the afternoon sun.  The cool climate reduces the problem, but still its likely this house will overheat on many sunny summer days, even assuming they used low SHGC glass. The positive side is that it probably will get some heating season sun exposure also, although for less than half the day.  The blinds are already closed, which isn't a good sign.  Ignoring overheating, its likely that glare is also a problem here. It might be possible to twist the house a bit, but a narrow lot and setback problem severely limit what can be done.
s face6

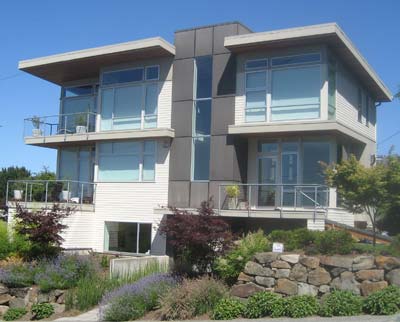

S facade at noon Aug 1st. The orientation is good, and the overhangs are shading the windows well; however the upper part of the windows likely never gets sun since the overhangs had to be very large to protect such tall windows.  The tall central window bank has no overhang at all, and the blinds are drawn even though it was only 75°F out, indicating there is some overheating problem. The unseen W facade doesn't have a lot of glass (the windows on the far left are duplicated on the W), so its probably not the problem.
Since it looks like there is a good glass/floor ratio, this house probably gets good heating season2 heat gain. The simplest improvement here is to trade interior blinds for exterior ones.
s face7

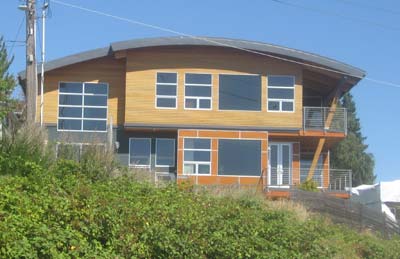

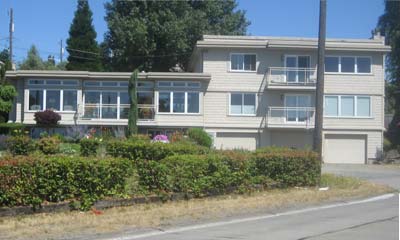

S facade at 12:30pm Aug 1st. The orientation is good and there is quite a bit of glass, but the overhang does virtually nothing. This house undoubtedly gets good heating seaon2 heat gain, but its hard to believe it doesn't overheat on every sunny day with mild outdoor temperatures. Since the blinds aren't drawn, I'm assuming the house has A/C (or it may be  unoccupied).
s face8
S facade at 12:30pm Aug 1st. The orientation is good and there is quite a bit of glass. In the lower right, the blinds are drawn on the window with no overhang--no surprises there. The upper overhang looks just a bit short (you'd expect the overhang to cover more like 3/4 of the' window on Aug 1), while the lower one is very short. Again in the left section we see upper windows that appear to be too high to ever get sun, and the difficulty of shading windows to extend so far below the overhang.  This house likely gets good heating season2 gain.
s face9
SW facade (approx 30° W of S) at 12:45pm Aug 1st.  This is a small commercial building, in a very typical design. Deciduous trees shade much of the building in the summer, leaving only this bank of windows exposed to the summer sun. Since there is no overhang, the SW orientation probably doesn't matter that much.  The window design is probably for daylighting, which is impossible to evaluate with seeing the inside.  There will be some heating season gain, but depending on the internal load, even it maybe undesirable.
s face10

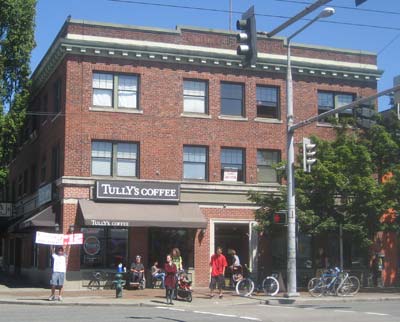

S facade at 1pm Aug 1st.  This is a small older commercial building--apparently retail below with apartments above. No A/C or low SHGC glass here, and of course no overhangs (although note the coffee shop is well covered!).  Shades drawn and windows open indicates overheating might be a problem--at least in this front part of the building.  The building is probably not well insulated, and so the sun warmed bricks may add to the early evening heat problems as well.  The main savings here is that there is more wall than glass, and hence these front units probably get pretty good heating season2 solar gain.
s face11

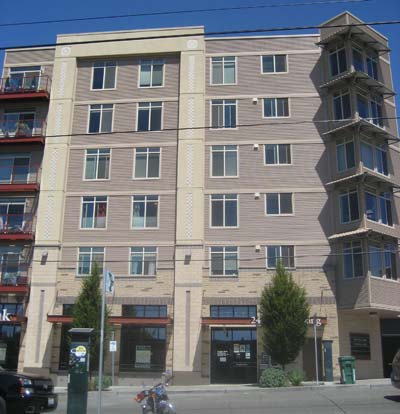

S facade at 1pm Aug 1st.  This are fairly new condos with retail on the main floor--essentially an updated version of the previous example.  Due to energy code we know it has better insulation and better windows, plus likely central A/C. The W facade (not shown) has quite a bit more glass, but otherwise not much has changed in the general layout-windows appear on a grid, and there are no overhangs (except note the porches on the far left).  The S glass is probably small enough that its not a dramatic effect in any season, although the W side could be a problem unless they used low SHGC glass.
s face12

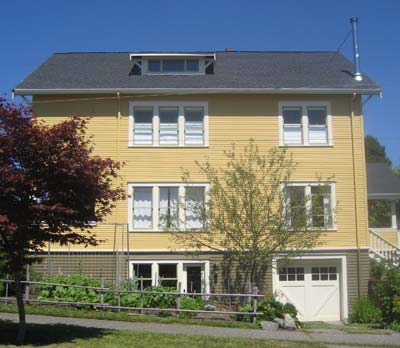

S facade at 1pm Aug 1st.  This is an older house that looks like its had some recent renovation. Although the overhang looks ample, its clearly too small (or maybe the upper windows are too tall), and the lowers have no shade at all.  Based on the position of the shades, excess sun is a problem, but there really isn't that much glass here, so its probably not a big problem.
The upside is that this house probably gets a noticeable amount of heating season2 gain..just not as much as it could.  A few more windows and better overhangs, and this would be decent Seattle passive solar house.
s face13

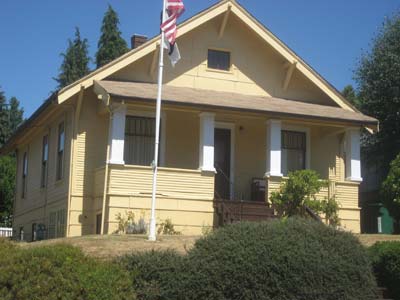

S facade at 130pm Aug 1st.  This older house appears to be of the same vintage as the previous one. It's smaller and oriented N-S instead of E-W, apparently dictated by the lot.  This orientation means the big front porch blocks the south sun probably all year-ideal in sunny Texas, but not so great here. The W facade gets essentially no protection from the overhang, but there are only 3 windows, so if there is a problem is only a room overheating. Because glass was relatively expensive, this situation is common for older houses.
w face14

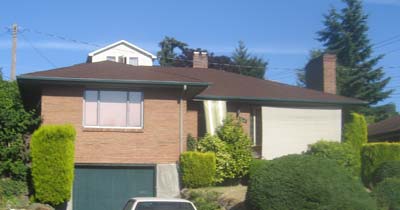

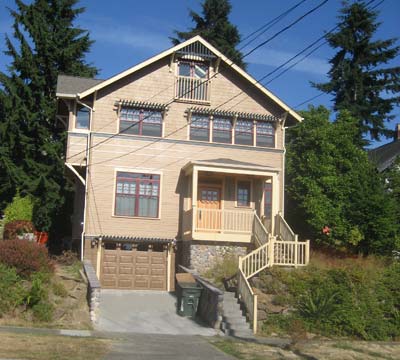

W facade at 6pm Aug 3rd. The problem here is the same as on every W facade: you need a huge overhang to effectively shade these windows.  There is not as much glass here as in other cases, so maybe low SHGC glass would be good enough.
The trellises would make a good place to hang exterior shades, but they're so far out of reach this might not be practical. The interior shades help some, but can overheat the window itself so much as to ruin it.
The south side of this house is shaded by large bushes, and the north had more glass than it ought to.
Note how little the 4-5' deep porch roof shades the door, but how it is effective on the much shorter adjoining window.
w face15

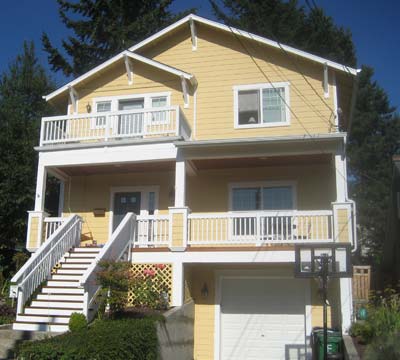

W facade at 6pm Aug 3rd.  These are quie large overhangs, but clearly they do nothing. Compared to older houses, this is a lot of glass, but compared to some, its not that much.  As usual, note that many of the shades are drawn and the fact they are internal (opening the window a crack helps).  For stack ventilation, the bank of awning windows on the upper right would work better if they were up near the ceiling, although there may be other vents in the rear.
w face16
W facade at 6pm Aug 3rd. This house is in the same general vicinity as the last two, but more than fifty years older.  This prairie style house was the first to regularly include big pieces of glass, although its not low SHGC glass, and there likely isn't any A/C.  The exterior shades likely work quite well (alas the left window is too high off the ground), but can't compensate for poor wall and attic insulation.  A solar attic fan might help a lot here.
w face17
W facade at 6pm Aug 3rd.  While you can see that this deep porch does provide decent shading, the lower right window is so low that half of it is still getting sun. The upper windows are not shaded, but thankfully they're also not large. If The upper porch had an overhang the size of the lower one, and the window sill on the lower right raised 18" or so, this house would have probably have no overheating issues, even without shading the upper right window.

Notes

1:  I've edited out house numbers, cars etc when possible to make these as generic as possible.  The point isn't about the specific house in the photo-there are others like them.

2: By heating season, I really mean the spring/fall part of the heating season, since there isn't much solar gain in Seattle in the dead of winter.  The ballpark sun angle for this season is 30° to 60°  (out of a full range of 19° to 66°).

3: note that solar noon in Seattle is approximately 1:15pm PDT.

Resources

www.susdesign.com Numerous passive solar calculation tools.

www.wintersundesign.com/faqs.html   More details info on making passive solar work in the northwest.
